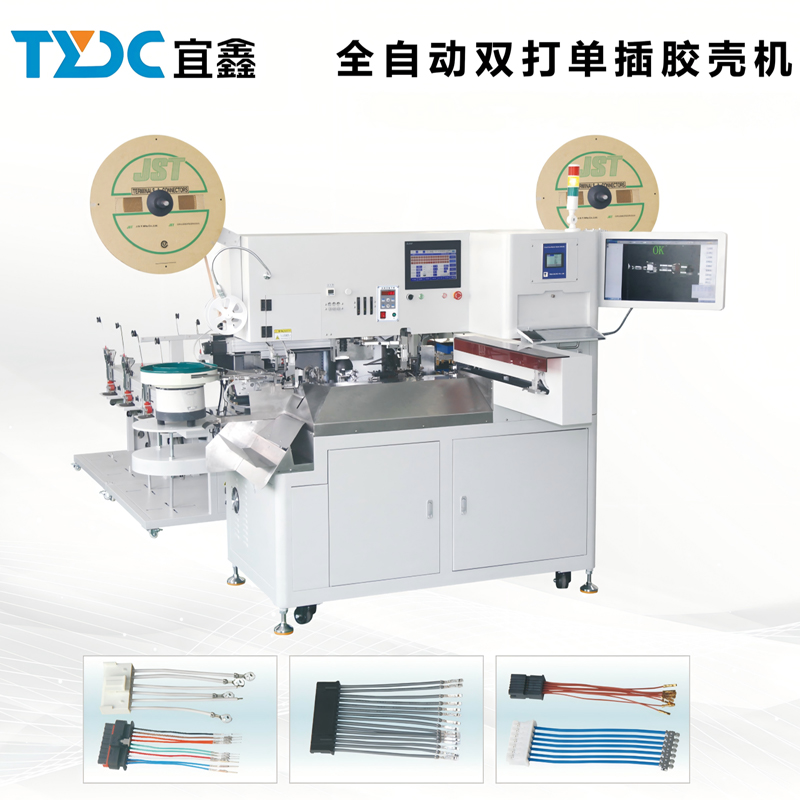

片端ワイヤーハーネス加工機
最新の価格を取得する| お支払い方法の種類: | L/C,T/T |
| インコタームズ: | FOB,CIF,EXW |
| 最小注文数: | 1 Set/Sets |
| 輸送方法: | Ocean,Land,Air |
| ポート: | Shenzhen port,Guangzhou port,Hongkong Port |
Model:
Option:
- Power Supply: AC 220V
- High power: 4.8 KW
- Compressed air: 0.4-0.6 MPA
- Air Consumption: 30 L/min
- Machine weight: Approximately 750 KG
- Dimensions (L×W×H): 1950 × 1600 × 1800 mm
- Loading Method: Automatic feeding of rubber shells via vibrating disc, automatic wire feeding, and automatic feeding of tinned wire and tin solution by motor
- Function: A-End: Strip, terminal crimping, and housing insertion B-End: Strip and tin dipping
- Wire Processing Range: AWG16–AWG30 Customizable
- Wire Processing Length: 40–900 mm Customizable
- Cutting Accuracy: 0.5 mm + 0.2% of cutting length
- Stripping Length: A-side 0.1–10 mm, B-side 0.1–6 mm
- Compression Ability: 2 T Customizable
- Maximum PIN Insertion: 20 pins per row, up to 3 rows
- Maximum Color Count: 8 colors
- Shell Size: Maximum 40 × 25 × 20 mm, Minimum 5 × 6 × 3 mm, spacing 1.0–4.2 mm
- Maximum Operating Speed: 2 seconds per unit
- Detection Device: CCD for terminal appearance, presence/absence of terminals, pull-out detection after shell insertion, presence/absence of adhesive seat, and production defect rate monitoring
- Standard Components: 8-axis scroll universal wire feeder
- Standard Configuration: Dual channel terminal pressure monitoring, Single lens CCD visual inspection
